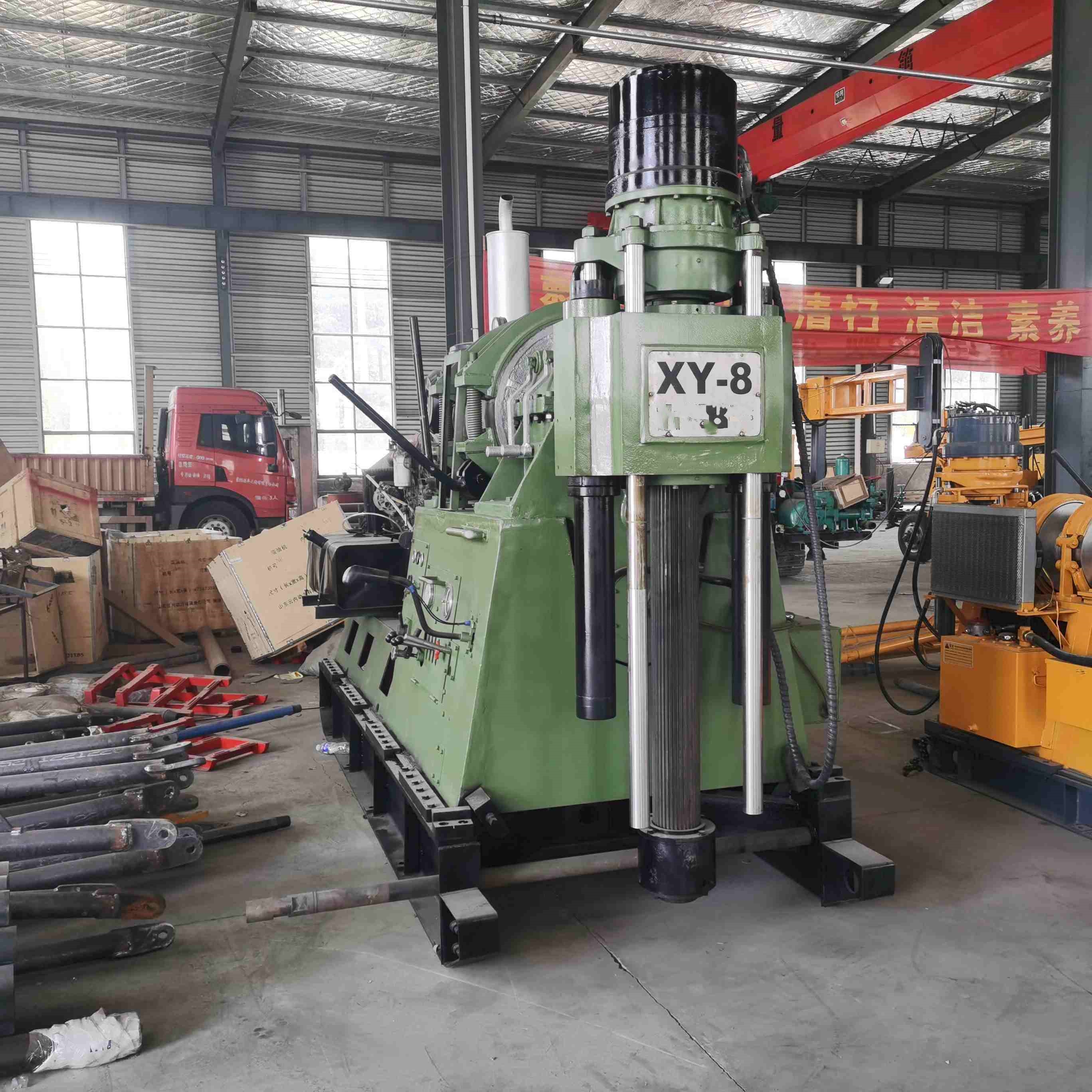

XY-8 Hydraulic Water Well Drilling Rig

1. Characteristics of XY-8 hydraulic water well drilling rig

  • Machine adopts pneumatic shift Fastgear 8JS118 auto transmission and clutch, compact structure, smooth operation, stable performance.

  • Using auto-control flexible-shaft shift agency, we achieve the long-distance transmission shift. The pneumatic shift is light and agile, and has the advantage of hommization.

  • Reasonable speed range and many speed radixes (8 forward speed, 1 reverse speed), with low-speed it has big torque (Max. up to 8000N.m).

  • Using concentrated forced lubrication system, as long as the rig runs, the separate lubrication oil pump starts working and sends lubrication oil to each node that requires lubrication. When the oil lubricates drive mechanism, it will also take away the heat inside, (lubrication system with separate condenser), to prevent the components from heat caused by high-speed high-load state.

  • The rig adopts vertical shaft instead of the traditional hexagonal vertical shaft, exponentially increasing gyrator transmission efficiency and carrying capacity . And new spindle shaft has big hole diameter (96 mm), with twin cylinder hydraulic feed the trip is much longer (up to 1000mm), especially suitable for large diameter drill pipe wireline coring, help to improve drilling efficiency and reduce the hole accident.

  • Light weight and can be disassembled to many parts, net weight 6500Kg.

  • The chuck is hydraulic-release normally closed hydraulic chuck, new structure, good compensatory. Carbide inset&welded slip structure, has large clamping force, long life, reliable operation.

  • With water brake, in deep hole drilling, its safer and more smooth to put down the drill pipe.

  • Hydraulic oil is supplied by gear oil pump, less power consumption, and the hydraulic system oil temperature is low and stable work. The system is equipped with a hand pump. When power machine can not work, workers can still use hand pump to lift tools from the bottom of the hole, in order to avoid burying accidents.

  • Advanced and compact structure, reasonable layout, all components are revealed outside, do not overlap, ease of maintenance, maintenance and repair.

  • The rig has a low center of gravity and long backward stroke (up to 530mm). Easy to be fixed on tower base, the rig has good stability in high-speed drilling.

  • With shockproof meter, its easy to observe hole situation. Control-handles are in reasonable layout, operation is flexible and reliable.

2. Parameters of XY-8 hydraulic water well drilling rig

Model

XY-8

Drilling angel

0-360°

Electric motor

Y280S-4 /75KW

Diesel engine

YC6A240-33/ 177KW

Spindle

96mm

Forward speed

74/106/150/208/300/431

Reserve speed

110rpm

Forward speed

110/157/222/309/445/640/905/1256

Reserve speed

74rpm

Max.torque of spindle

8000nm

Spindle stroke

800mm

Max.lifting force of spindle

180kn

Max.thrust of spindle

110kn

Type

Planetary gear drive, hand brake

Wire rope caliber

21.5mm(6X19)

Drum capacity for rope

120m

Max.lifting force(single rope)

60kn

Power unit core speed 1480rpm(m/s)

0.48/0.68/0.96/1.34/1.96/2.81/3.96/5.51

Power unit core speed 2300rpm(m/s)

0.71/1.01/1.42/1.99/2.91/4.17/5.88/8.19

Transmission

Gear 8JS118 transmission and ancillary clutch

Oil pump type/ model

gear oil pump/ CB-32

core speed

2500r/min

Displacement

32 ml/r

Work pressure

20mpa

Max.pressure

25mpa

Direction of rotation

Right(see from shaft end)

Work core speed

700-1800r/min

Single rope compensational speed

3-8m/s

Single rope compensational load

45kn

Form

skids type(with sliding base)

Rig backward stroke

530mm

Dimensions(L*W*H)

3800*1500*2460mm

Rig weight

6500kg
