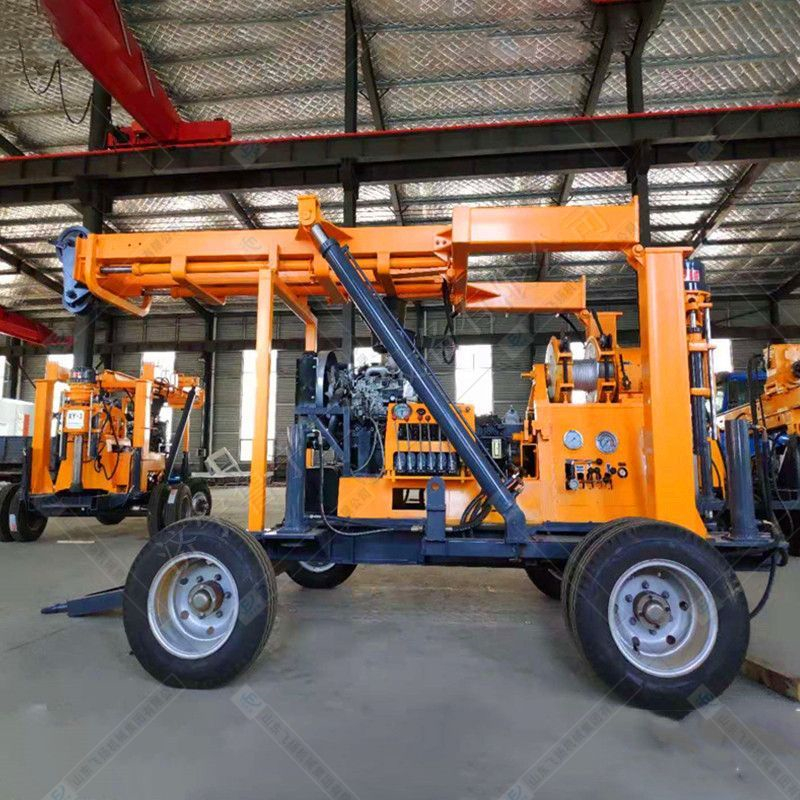

XYX-3 Wheeled Hydraulic Water Well Drilling Rig

1. Characteristics of XYX-3 wheeled hydraulic water well drilling rig

• The drilling rig is equipped with wheeled walking mechanism and hydraulic cylinder support, which is convenient for the whole machine to be relocated and easy to adjust the level of the drilling rig.
• Using the ball card holding mechanism to replace chuck,can implement non-stop down rod,convenient operation,safe and reliable.
• With oil pressure feeding mechanism to improve drilling efficiency.
• The pressure gauge is provided with the pressure gauge of the bottom of the hole, so it is easy to master the hole in the hole.
• The lifting and falling tower is hydraulic operation, which is convenient and reliable.
• The diesel engine uses electric start to reduce the labor intensity of the worker.

2. Parameters of XYX-3 wheeled hydraulic water well drilling rig

Model

XYX-3

Drilling hole depth

100/ 250 / 300/ 600 m

Maximum opening diameter

300 / 200 /150 / 75mm

Max open hole caliber

300mm

Final hole diameter

75mm

Drill pipe

60mm

Borehole inclination

90°-65°

Spindle

Rotation speed

30-1050r/min

Reversal speed

29-137r/min

Vertical axis stroke

560mm

Diameter of shaft inner hole

96mm

Vertical axis lifting capacity

60kn

Main hoist

Single rope lifting speed

0-45m/min

Wire rope diameter

14mm

Band width

90mm

Drum diameter

300mm

Reel capacity

30m

Maximum lifting capacity of single rope

40kn

Auxiliary hoist

Drum diameter

140mm

Diameter of steel wire

6mm

Reel capacity

450m

Mud pump

Mud pump

BW-250 Horizontal three cylinder

Flow

250 l/min

Working pressure

7mpa

Inlet diameter

75mm

Outlet diameter

50mm

Gear oil pump

Double oil pump

CBF-F63/25

Front-end flow pressure

63 l/min 20mpa

Backend flow pressure

25 l/min 20mpa

Rig power

Diesel engine

FAW Xichai 4 cylinder

Electric machinery

Y180L-4 22KW

Wheeled chassis

Bearing capacity of wheel chassis

3.5t

Wheel chassis length

2.6m

Wheel chassis width

2m

Wheel chassis height

0.6m

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
