50 type hydraulic portable core drilling rig

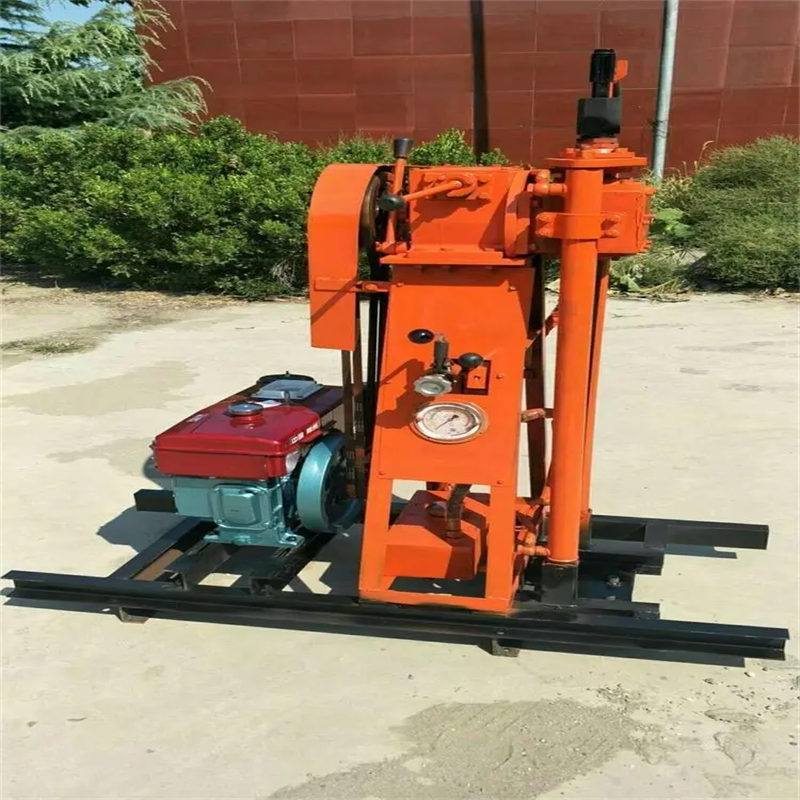

YQZ-50A Hydraulic Portable Core Drilling Rig

No.	Item	Specification	Unit	Quantity
1	Drilling rig host	YQZ-50A	set	1
2	Drill pipe (including joint)	42mm	m	50
3	Head joint	42/57mm	pc	2
4	Head	89mm	pc	1
5	Opening hole pipe	89mm	pc	1
6	Alloy bit	91mm	pc	1
7	Head	73mm	pc	1
8	Core tube	73mm	pc	1
9	Diamond bit	75mm	pc	1
10	Faucet		pc	1
11	Wellhead plate		pc	1
12	Cushion fork	57mm	pc	1
13	Spanner	57mm	pc	1
14	Free clamp	73/89mm	pc	2
15	Water pump		pc	1
16	Inlet and outlet water pipe		set	1
17	Water filter		pc	1

1. Brief introductions of YQZ-50A hydraulic portable core drilling rig

YQZ-50A hydraulic portable drilling rig is a small sampling drilling equipment suitable for plains, mountainous areas and areas with inconvenient traffic and energy. It is now widely used in railway, water conservancy and other construction projects and geological core drilling and small grouting holes in wild mountain areas.

2. Features of YQZ-50A hydraulic portable core drilling rig

• Equipped with dual-cylinder hydraulic feed system, the drilling speed is fast and the working efficiency is high.
• The drilling rig is equipped with a fixed clamping mechanism and an integrated main rod, which does not require a drilling tower, and the work is convenient.
• Equipped with a 4-speed transmission system. The operator can freely adjust the forward rotation speed through three gears, and is also equipped with a slow reverse gear, which is convenient for the operator to disassemble the drill pipe and drilling tool.
• The handle is centralized, convenient to operate, safe and feasible.
• Equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is convenient for grasping the situation in the hole.
• Compact structure and small floor space.
• Strong decomposition ability, easy to relocate, suitable for hilly, mountainous and other complex terrain work.

3. Technical parameters of YQZ-50A hydraulic portable core drilling rig

No.	Item	Unit	Parameter
1	Drilling diameter	mm	75
2	Drilling depth	m	50
3	Drill pipe	mm	42
4	Vertical shaft speed	rpm	70-650 (1-3 gear)
5	Reverse speed	rpm	50-130（R gear）
6	Cylinder stroke	mm	1100
7	Host power	diesel engine	R180
8	Rig weight	kg	280
9	Rig size	mm	14009501600

4. Configuration list of YQZ-50A hydraulic portable core drilling rig

YQZ-50B Hydraulic Portable Core Drilling Rig

1. Brief introductions of YQZ-50B hydraulic portable core drilling rig

YQZ-50B hydraulic portable drilling rig is a small sampling drilling equipment suitable for plains, mountainous areas and areas with inconvenient traffic and energy. It is now widely used in railway, water conservancy and other construction projects and geological core drilling and small grouting holes in wild mountain areas.

2. Features of YQZ-50B hydraulic portable core drilling rig

• With oil pressure automatic feeding mechanism and high drilling efficiency.
• The ball card clamping mechanism is used with a hexagonal active drill rod, and the rod can be reversed without stopping the machine.
• The drilling rig is equipped with hydraulic hoist, which is convenient and efficient when used in conjunction with the drill tower.
• Equipped with 4-speed shifting system. It is convenient for the operator to freely adjust the forward rotation speed according to the geological conditions, and is also equipped with a slow reverse gear, which is convenient for the operator to disassemble the drill rod and drilling tool.
• The handle is centralized, convenient to operate, safe and feasible.
• Equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is convenient for grasping the situation in the hole.
• The drilling rig is equipped with a shift slide, which can quickly replace the drilling tool, saving time and effort.
• Compact structure, small size, light weight, small floor space.
• Strong decomposition ability, easy to relocate, suitable for hilly, mountainous and other complex terrain work.

3. Technical parameters of YQZ-50B hydraulic portable core drilling rig

No.	Item	Unit	Parameter
1	Drilling diameter	mm	75
2	Drilling depth	m	50
3	Drill pipe	mm	42
4	Vertical shaft speed	rpm	70-650 (1-3 gear)
5	Reverse speed	rpm	50-130（R gear）
6	Hoist pulling force	kg	500
7	Cylinder stroke	mm	600
8	Move itinerary	mm	200
9	Host power	diesel engine	R180
10	Rig weight	kg	340
11	Rig size	mm	14009501250

4. Configuration list of YQZ-50B hydraulic portable core drilling rig

No.	Item	Specification	Unit	Quantity
1	Drilling rig host	YQZ-50B	set	1
2	Drill pipe (including joint)	42mm	m	50
3	Head joint	42/57mm	pc	2
4	Head	89mm	pc	1
5	Opening hole pipe	89mm	pc	1
6	Alloy bit	91mm	pc	1
7	Head	73mm	pc	1
8	Core tube	73mm	pc	1
9	Diamond bit	75mm	pc	1
10	Drill tower	4.5m	set	1
11	Wire rope		circle	1
12	Rope buckle		set	1
13	U-shaped ring		pc	1
14	Extractor		pc	1
15	Faucet		pc	1
16	Hexagonal main rod	3m/pc	pc	1
17	Main rod reduction		pc	1
18	Wellhead plate		pc	1
19	Cushion fork	57mm	pc	1
20	Spanner	57mm	pc	1
21	Free clamp	73/89mm	pc	2
22	Water pump	Processing onto the rig	pc	1
23	Inlet and outlet water pipe		pc	1
24	Water filter		pc	1
