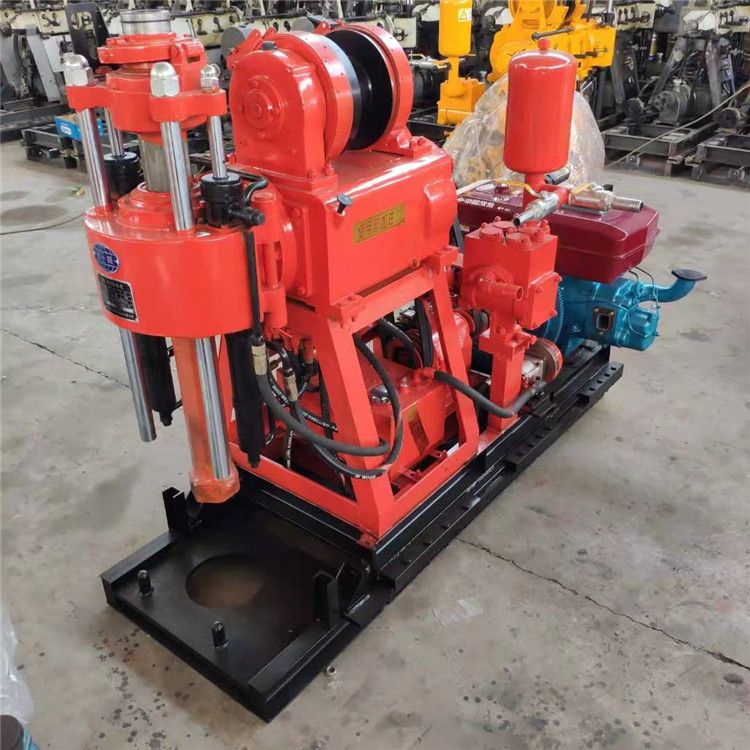

XY-200 Hydraulic Core Drilling Rig

1. Applications of XY-200 hydraulic core drilling rig

Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.

2. Parameters of XY-200 hydraulic core drilling rig

Model

XY-200

Maximum opening diameter

400mm

Maximum borehole depth

200m

Diameter of the end hole

75mm

Borehole dip angle

90-75°

Machine overall size

2.75*0.95*1.60m

Drill pipe diameter

50mm

Weight of drill rig diameter of drill pipe (without power)

760kg

Spindle

Shaft rotation speed

71/142/310/20r/min

Vertical axis stroke

450mm

Windlass

Maximum lifting weight of single rope

2008kb

Drum lifting speed

17/35/75/160 rm/s

Wire rope diameter:

13mm

Wire rope capacity

35mm

Width of sluice

70mm

Mud pump

Type: horizontal single cylinder double action

flow:180L/min

Maximum pressure

1.5mpa

Working pressure

0.7mpa

Inlet size

50mm

Outlet pipe diameter

45mm

Power

Diesel oil

22hp

Rated speed

2200r/min

Electric machinery

15kw

Rated speed

1460r/min

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
