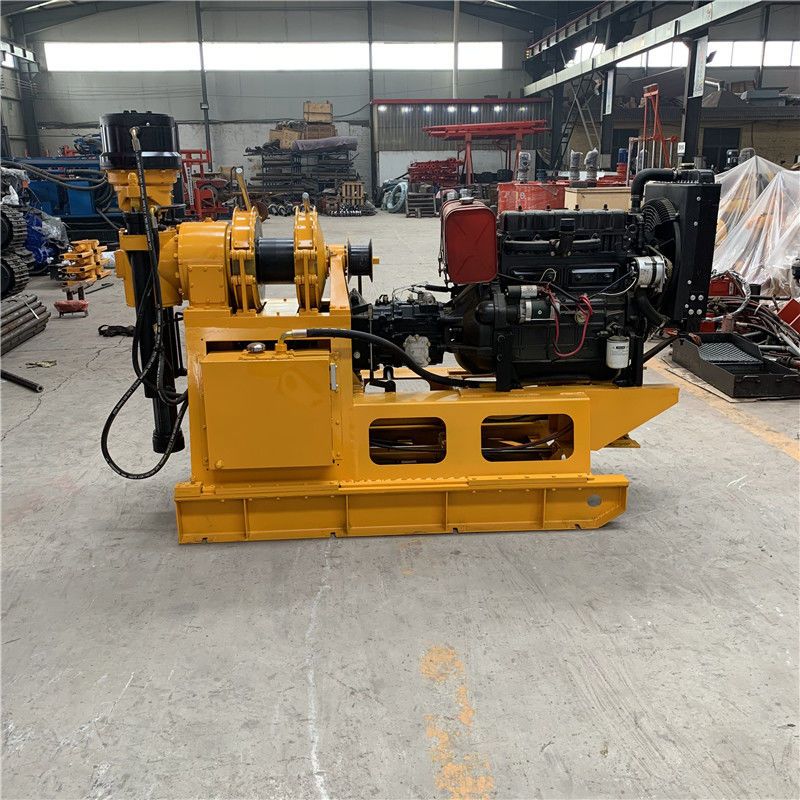

XY-180 Hydraulic Core Drilling Rig

1. Applications of XY-180 hydraulic core drilling rig

The XY-180 hydraulic core drilling rig is designed on the basis of the XY-1A hydraulic core drilling rig. It is a low speed and high torque portable drilling machine with oil pressure.

This drill rig is suitable for engineering geological survey of railway, hydropower, traffic, bridge, dam foundation and other buildings, geological core drilling and physical investigation, drilling holes for small holes and blasting holes, a small water well drilled.

2. Parameters of XY-180 hydraulic core drilling rig

Model	XY-180
Drilling depth（m）	180/150/120/90/70/30
Borehole diameter（mm）	75/91/110/130/150/300
Maximum opening diameter（mm）	375
Drill pipe diameter（mm）	42/50
Spindle speed (r/min)	71/142/310/620
Spindle stroke（mm）	450
Upgrading ability (KN)	15
Diameter of steel wire（mm）	12
Type	gear pump
Model	YBC-12/80
Rated pressure (MPa)	8
Rated speed (r/m)	1500
Displacement（ml/r）	8
Power supply	ZS1115 diesel engine and 15kw motor

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
