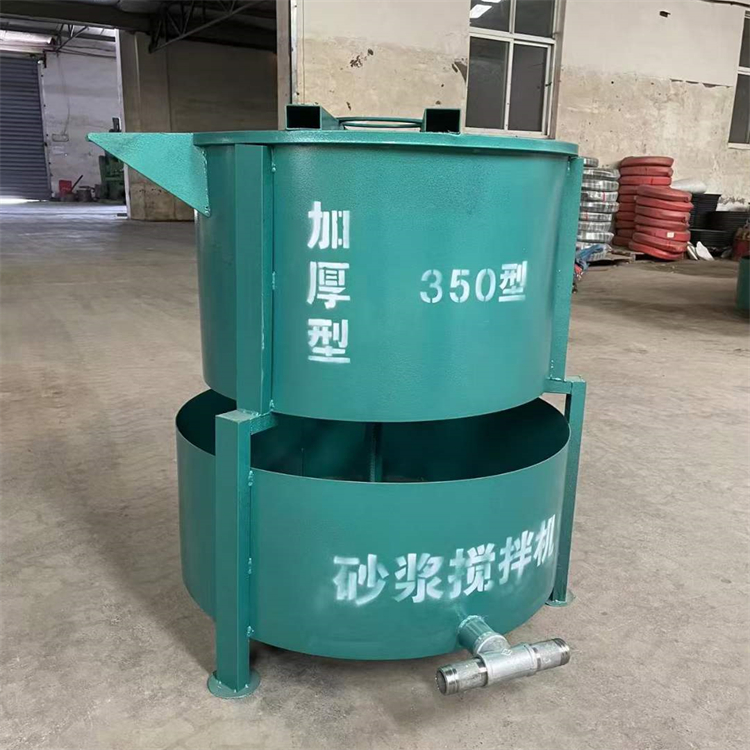

Double Drum Mixer

Product Description: The double barrel mixer allows the mortar to enter the storage hopper for secondary mixing after the first mixing, ensuring that the mortar does not settle, separate, and discharge evenly and smoothly, avoiding slurry blockage.

Technical parameters of double-layer mixer
Product model	JB200	Product model	JB350
Assignment method	motor drive	Assignment method	motor drive
Layout form	vertical	Layout form	vertical
Motor power	3kw	Motor powe	3kw
Mixing volume	200L	Mixing volume	350L
Pulp output	200L	Pulp output	350L
Revolution	54 r/min	Revolution	54 r/min
weight	170kg	weight	1190kg
Outline dimension（Diameter * Height）	800*1360	Outline dimension（Diameter * Height）	900*1680
Number of layers	Upper layer stirring, lower layer slurry discharge	Number of layers	Upper layer stirring, lower layer slurry discharge
