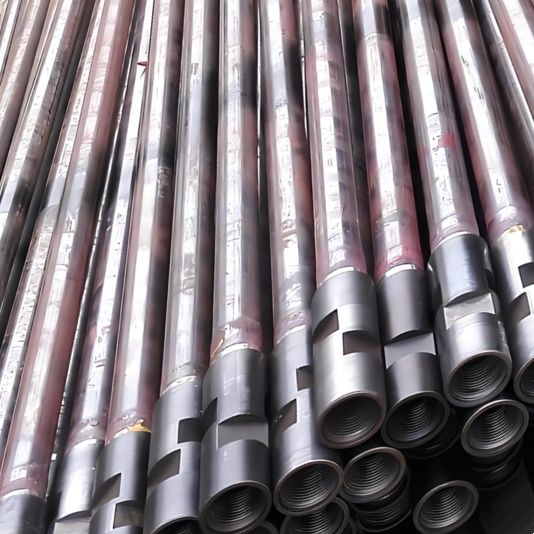

Upsetting Drill Pipe

Fine buckle drill rod is a drilling tool connected to a locking joint, which transmits the torque of the drilling rig to the bottom drill bit and is responsible for conveying drilling fluid.

Outer diameter of pipe body		Thickened form	Steel grade	Rod wall thickness	Weight of drill pipe	Drill pipe length	Thread Standard	Joint diameter
inch	mm			mm	Kg/m	mm		mm
1.6	42	EU	DZ50	6.5	5.7	1000-9000	1:16	57
			R780
2	50	EU,IU	DZ50	6.5	7.1	1000-9000	1:16	65
			R780					68
2.375	60	EU,IU	R780	7.1	9.4	1000-9000	NC26	75
			S135					78
2.875	73	EU,IU	R780	8	12.9	1000-9000	NC31	95
			G105
				9.19	14.5
								105
			S135
3.5	89	EU,IU	R780	8	16	1000-9000	NC38	121
			G105
				9.5	19			127
			S135
4	102	EU,IU	R780	6.5	15	1000-9000	NC40	133
			G105
				8.38	19			140
			S135
4.5	114	EU,IU	R780	6.8	18	1000-9000	NC46	158
			G105
				8.56	22			168
			S135
5	127	EU,IU	R780	9.19	27	1000-9000	NC50	168
			G105
				12.7	36
			S135
We can produce fine thread drill rods of different materials, lengths, diameters, and wall thicknesses, as well as customize drill rods according to customer requirements for materials, lengths, wall thicknesses, and threads.
