Grouting Recorder/Geotechnical Water Permeability Rock Lugeon Test Recorder

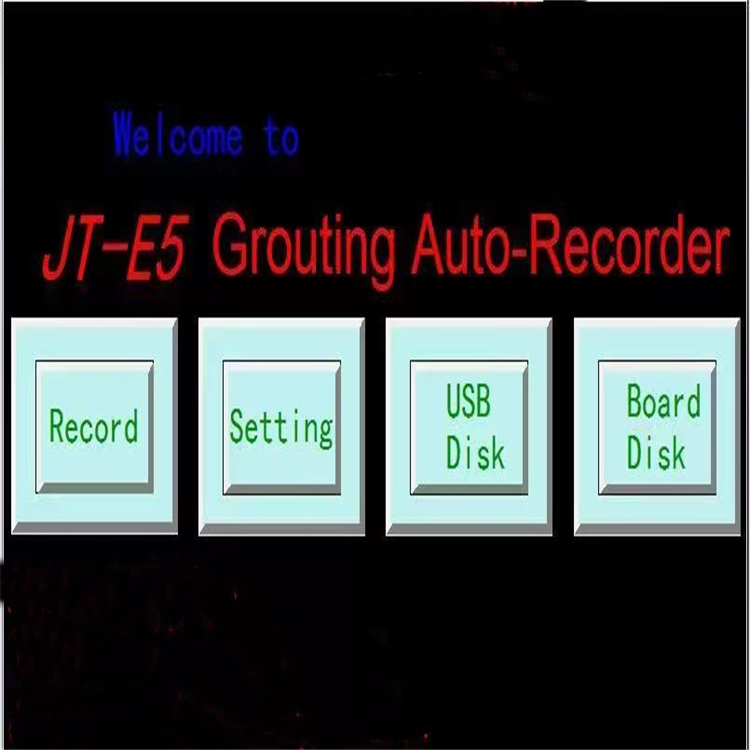

The integration of automatic grouting recorder is a new generation of grouting recording device developed by our company and Zhejiang University of mechanical design, computer processing technology in computer, touch screen, display, and print parameters setting functions, no buttons and mouse, simple and intuitive, data can be transferred to the computer, print format for A4 also, can be directly connected with the parallel printer for printing. Application of curtain grouting, permeability rock Lugeon testing, consolidation grouting, compaction grouting, high pressure jet grouting, karst grouting, multi small diameter deep mixing pile, prestressed pipe grouting, road maintenance grouting and other grouting process.

The integral grouting automatic recorder supports large cycle mode, small cycle mode, two parameter mode and three parameter mode simultaneously. Three parameter data acquisition and flow rate, pressure and density control of single double size circulation grouting process, visual digital display, simple and convenient operation, quality inspection records of the grouting process, can help the operator to master the construction of distribution system in the process of pile grouting amount, to make appropriate and timely treatment, operation and control of pile quality reduce operating intensity, reduce material waste. In the process of grouting construction, the recorded data can be used as the basis for the inspection and acceptance departments.

Performance parameter:
1,Recorder host accuracy: 0.5%;
2,Standard pressure: range 0-60, MPa accuracy 0.5%, can be customized according to customer requirements;

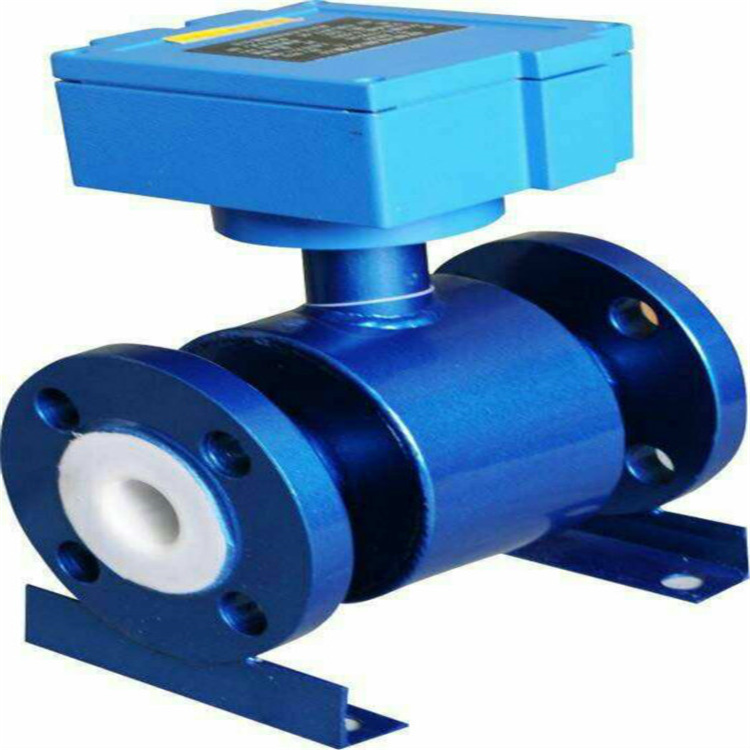

3,Standard flow: range 0-150, L/min accuracy 1%, can be customized according to customer requirements;
4,Standard density: range 0-4, g/cm3 accuracy 1%, can be customized according to customer requirements;
5,Adaptation temperature: 40 degrees below zero to 60 degrees above zero.

Through domestic authoritative measurement institutions to detect and identify, the measurement results are internationally common.
The procedure is prepared by more than 10 years of experience in grouting construction and the engineers who are familiar with electronic technology, and are guided by well-known grouting experts in the country. They are of professional quality and more reliable.
The instrument adopts the military technology, system components to meet the special requirements of grouting construction, can adapt to all kinds of extreme temperature of minus 40 to 60 DEG C, can adapt to the highway, railway and tunnel grouting foundation engineering, water conservancy and hydropower and other industry field and the environment and water pressure grouting construction.
